Amazon Manual Diaphragm Pumps
Amazon Bulkhead

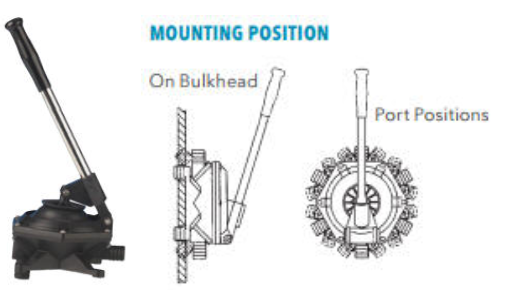

For mounting on bulkhead or deck.
Repositionable ports and body offer an amazing 96 assembly variations.
Corrosion-resistant materials throughout.
Stainless steel handle supplied with mounting.
| Flow |
Self Priming |
Fitting |
Size |
Weight |
| 12 GPM (45 LPM) |
Up to 13' (4m) |
1" (25mm) ID hose |
18cm x 12cm x 20cm |
0.6kg |
| Model |
Description |
Price |
| 29240-0000 |
Bulkhead Pump with detachable handle |
165.56 € |
| 29246-1000 |
Service Kit |
67.69 € |
Amazon Universal
.png)

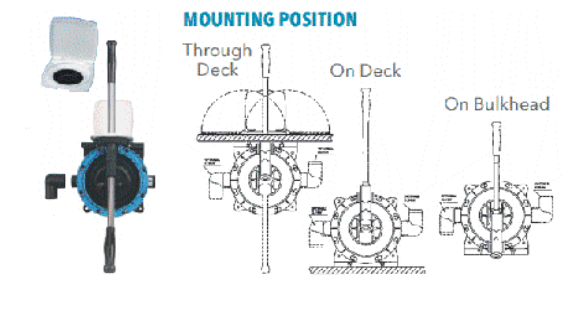

For mounting on bulkhead, through bulkhead, on deck or through deck.
Unique safety feature allows operation from both inside and outside the cabin (with optional Through Deck Kit).
Push-fit inlet and outlet elbows swivel through 360 Degrees to increase flexibility of installation still further.
Corrosion-resistant materials throughout.
Quick-release clamp ring gives fast access for blockage clearance.
1-1/2" (38mm) ports give excellent solids-handling ability for use with holding tanks.
Stainless steel handle supplied with mounting clips and provision for safety lanyard
| Flow |
Self Priming |
Fitting |
Size |
Weight |
| 25 GPM (100 LPM) |
Up to 10' (3m) |
1-1/2" (38mm) ID hose |
24cm x 24cm x 15cm |
1.2kg |
| Model |
Description |
Price |
| 29270-0000 |
Universal Pump with detachable handle and one Push-Fit Elbow |
183.73 € |
| 29279-0000 |
Optional Through Deck Kit |
47.30 € |
| 29266-1000 |
Additional Push-Fit Elbow |
17.77 € |
| 29276-1000 |
Service Kit |
67.69 € |
Amazon Thrudeck
.png)

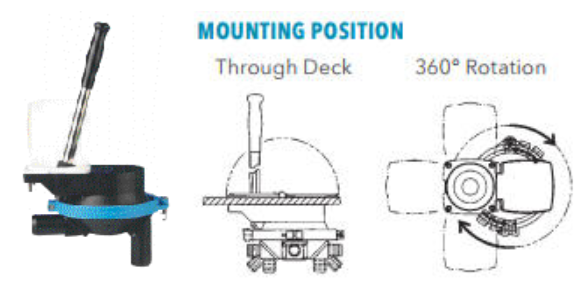

For mounting through deck or through bulkhead.
The ultimate compact through deck pump with no less than 16 port variations relative to the body.
Loosening just one screw lets you clear blockages
or position the body anywhere through 360 Degreesrelative to the handle position.
Compact design and low profile allow installation in confined spaces.
Sleekly styled Through Deck Kit and cover, with four mounting positions relative to the pump.
Excellent solids-handling ability for use with holding tanks.
Corrosion-resistant materials throughout.
Stainless steel handle supplied with mounting clips and provision for safety lanyard.
| Flow |
Self Priming |
Fitting |
Size |
Weight |
| 13 GPM (50 LPM) |
Up to 16' (5m) |
1-1/2" (38mm) ID hose |
25cm x 11cm x 12cm |
1.2kg |
| Model |
Description |
Price |
| 29250-0000 |
1" (25mm) Thrudeck Pump with detachable handle and Through Deck Kit |
193.84 € |
| 29250-0010 |
1-1/2" (38mm) Thrudeck Pump with detachable handle and Through Deck Kit |
182.11 € |
| 29256-1000 |
Service Kit |
70.89 € |
Amazon Warrior
.png)

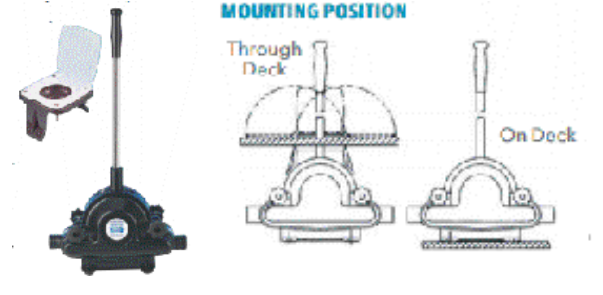

For mounting on deck or through deck (with optional Through Deck Kit and Bracket).
Robust design particularly suited to workboats and larger leisure craft,
or any installation where particularly heavy-duty use is anticipated.
29280-0100 model with swivel arms and captive wheel nuts meets DTI requirements for use on lifeboats.
18" (45cm) handle assists sustained high outputs of up to 35 GPM (135 LPM).
Double diaphragm design gives maximum efficiency and added safety.
1-1/2" (38mm) ports give large solids-handling ability.
Can function on one diaphragm in an emergency.
Corrosion-resistant materials throughout.
| Flow |
Self Priming |
Fitting |
Size |
Weight |
| 35 GPM (135 LPM) |
Up to 17.5' (5.5m) |
1-1/2" (38mm) ID hose |
35.5cm x 24cm x 20cm |
4.95kg |
| Model |
Description |
Price |
| 29280-0000 |
Warrior Pump with detachable handle |
1,001.63 € |
| 29279-0000 |
Optional Through Deck Kit |
47.30 € |
| 29289-0000 |
Under Deck Bracket (required for use with Through Deck Kit) |
215.88 € |
| 29286-1000 |
Service Kit |
161.33 € |
|
